Convex Optimization Problem
Consider a parametrized convex optimization problem \[
\begin{aligned}
& \min_x \quad && f(x, \theta) \\
& \text{s.t.} && g(x, \theta) \leq 0 \\
&&& h(x, \theta) = 0
\end{aligned}
\]
Where \(f\) and \(g\) are convex functions, and \(h\) is an affine function.
KKT Conditions
Karush-Kuhn-Tucker (KKT) conditions generalize the method of Lagrange multipliers to constrained optimization problems. They provide necessary conditions for a solution to be optimal.
The KKT conditions are:
\[
\begin{aligned}
g(x^*) &\leq 0, \qquad &\text{(Primal feasibility)} \\
h(x^*) &= 0, &\text{(Primal feasibility)} \\
\lambda^* &\geq 0, &\text{(Dual feasibility)} \\
\lambda^* \circ g(x^*) &= 0, &\text{(Complementary slackness)} \\
\nabla f(x^*) + (\lambda^*)^T \nabla g(x^*) + (\nu^*)^T \nabla h(x^*) &= 0 &\text{(Stationarity)}
\end{aligned}
\]
Where \(\lambda^*\) and \(\nu^*\) are the Lagrange multipliers for the inequality and equality constraints, respectively. The \(\circ\) operator denotes the element-wise product (Hadamard product).

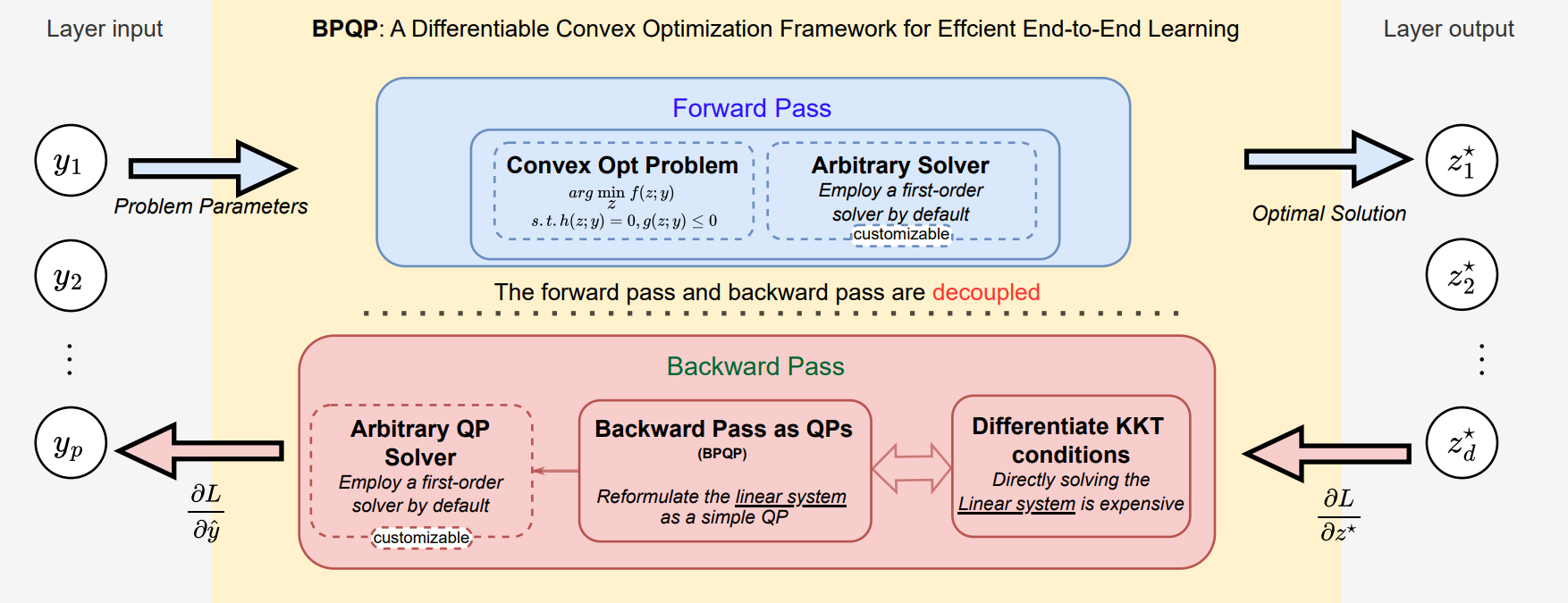

Differentiable Optimization (2/2)
At the solution, we can treat the solver as simply finding the root of the nonlinear equation set
\[
G(x^*, \lambda^*, \nu^*) = \begin{bmatrix}
\nabla f(x^*) + (\lambda^*)^T \nabla g(x^*) + (\nu^*)^T \nabla h(x^*) \\
\lambda \circ g(x^*) \\
h(x^*) \\
\end{bmatrix} = 0
\]
Using the shorthand \((x^*, \lambda^*, \nu^*)(\theta)\) as the primal-dual optimal solution as a function of \(\theta\), we have
\[
\begin{split}
& \partial_{\theta} G(x^\star(\theta), \lambda^\star(\theta), \nu^\star(\theta), \theta) = 0 \\
\Longrightarrow \;\; & \partial_{x, \lambda, \nu} G(x^\star, \lambda^\star, \nu^\star, \theta) \partial_\theta (x^\star, \lambda^\star, \nu^\star)(\theta) + \partial_{\theta} G(x^\star, \lambda^\star, \nu^\star, \theta) = 0 \\
\Longrightarrow \;\; & \partial_\theta (x^\star, \lambda^\star, \nu^\star)(\theta) = -\left (\partial_{x, \lambda, \nu} G(x^\star, \lambda^\star, \nu^\star, \theta) \right)^{-1} \partial_{\theta} G(x^\star, \lambda^\star, \nu^\star, \theta).
\end{split}
\]
From this, we can differentiate through the solution
\[
\partial_{x, \lambda, \nu} G(x^*, \lambda^*, \nu^*, \theta) = \begin{bmatrix}
\nabla^2_x f + (\lambda^*)^T \nabla^2 _x g & \partial_x g & \partial_x h \\
\partial_x g^T \operatorname{diag}(\lambda^*) & \operatorname{diag}(g) & 0 \\
\partial_x h^T & 0 & 0 \\
\end{bmatrix}
\]
